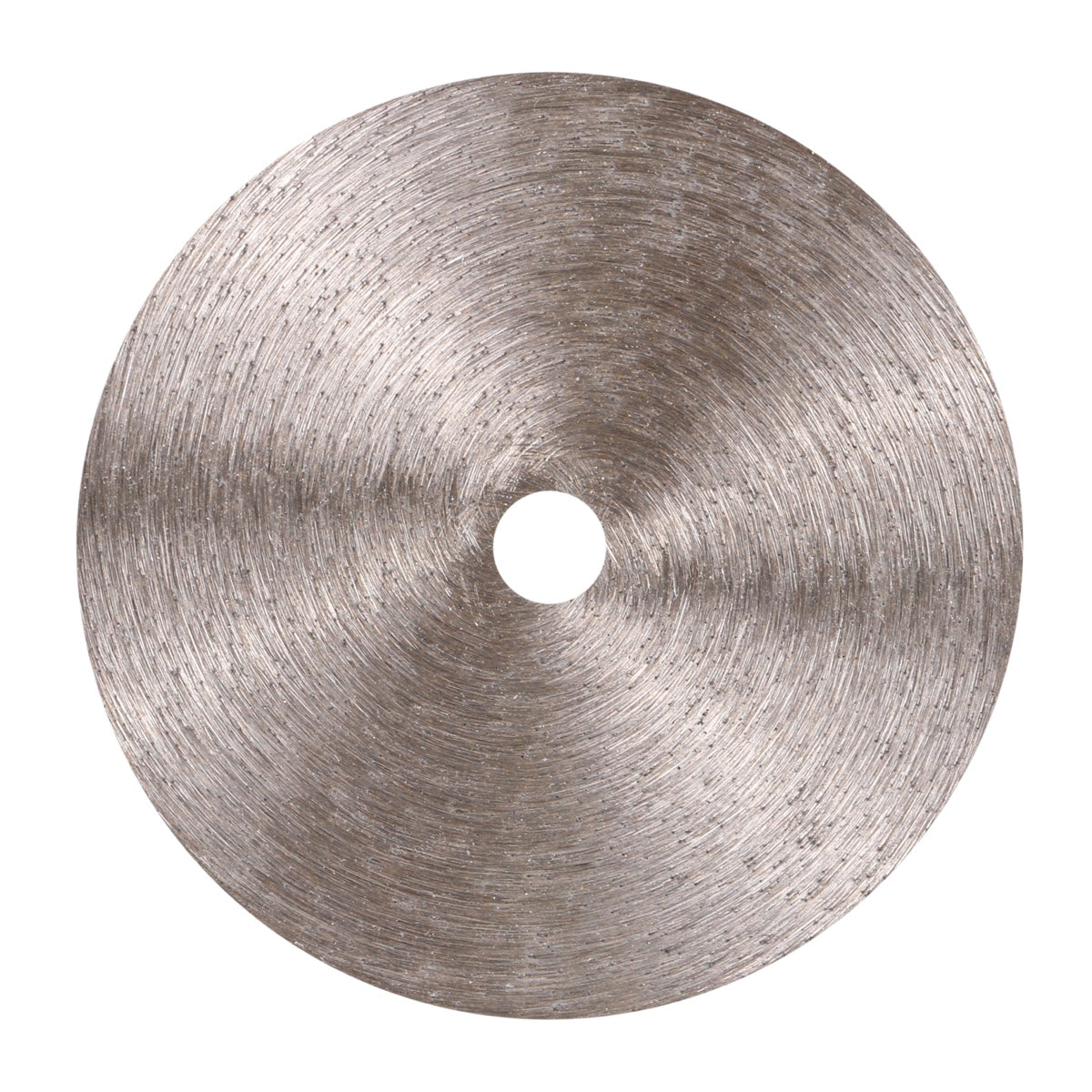

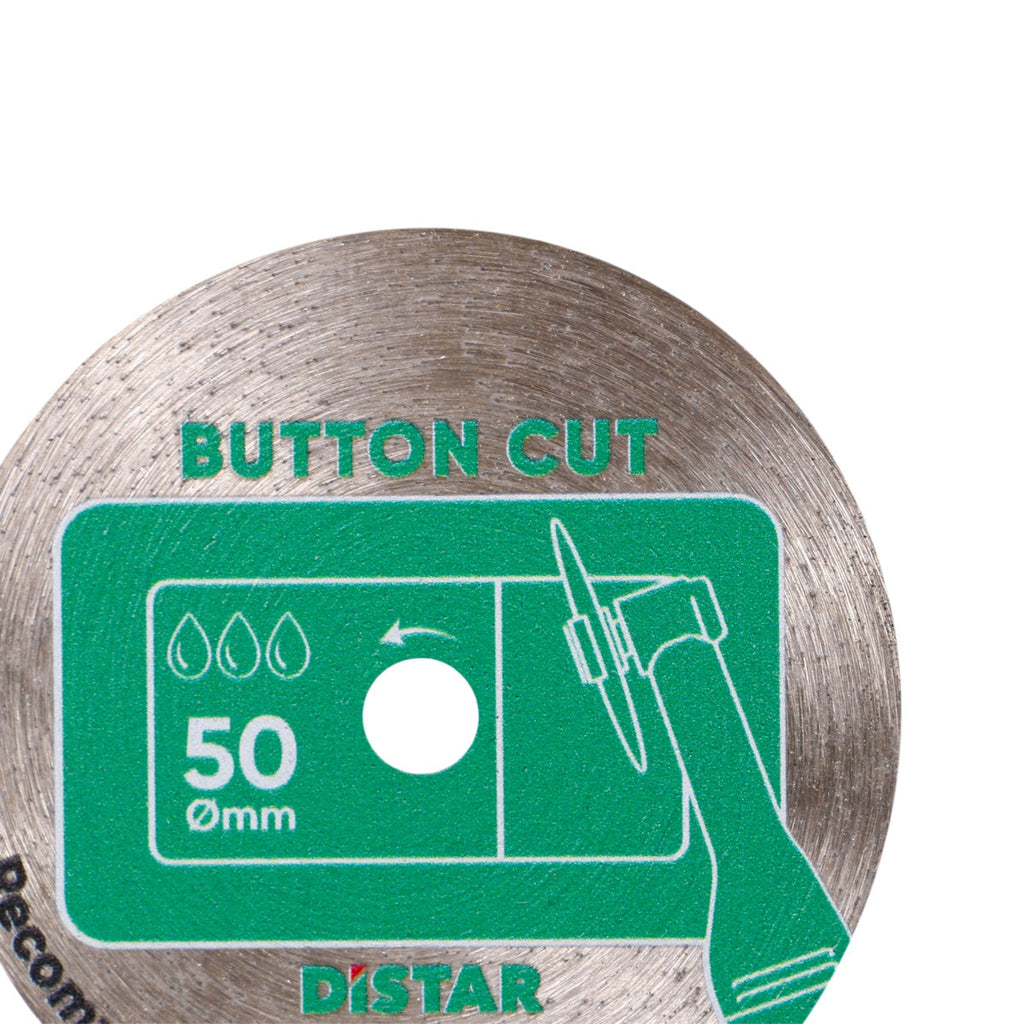

Best 50mm Diamond Blade for Cutting Ceramic Flush Buttons & Switches
The Distar ButtonCut 50mm (2") diamond blade is engineered for professionals who fabricate ceramic flush buttons, switches, sockets, and custom installation elements using small engraver machines.
Traditional methods require cutting followed by time-consuming grinding to remove chips. The ButtonCut eliminates that step entirely — its 0.8mm ultra-thin kerf and fine diamond grain deliver a clean, chip-free edge straight off the cut. Finished elements look professional and flawless, right out of the machine.
Designed for Small Engraver Machines
This blade is optimized for use with small engraver machines and long-neck rotary tools, making it ideal for:
- Tile fabricators producing custom ceramic elements
- Bathroom and kitchen installation specialists
- Contractors cutting flush-mount switches and sockets
- Professionals requiring chip-free precision on ceramic
What Materials Can This Blade Cut?
- Ceramic tile elements
- Porcelain gres
- Flush buttons and switch plates
- Custom ceramic installation components
Chip-Free Cuts — No Grinding Required
Thanks to its ultra-thin 0.8mm blade and fine diamond grain, the ButtonCut provides:
- Clean edges with no post-cut grinding needed
- Dramatically reduced production time per element
- Consistent, repeatable precision
- Professional finish on every cut
Wet Cutting Performance
Wet cutting (required): A constant water supply must be maintained at all times. Even a slight reduction in water flow can cause chipping. Hand sprayers are not recommended — use the Cover attachment or a battery-powered water supply device for best results.
Product Specifications
| Specification | Detail |
|---|---|
| Diameter | 50mm (2") |
| Blade Thickness | 0.8mm |
| Bore Diameter | 5.8/3.2–3.0F |
| Application | Ceramic flush buttons, switches, sockets, custom elements |
| Tool Compatibility | Small engraver machines (~10,000 RPM) |
| Cutting Type | Wet only |

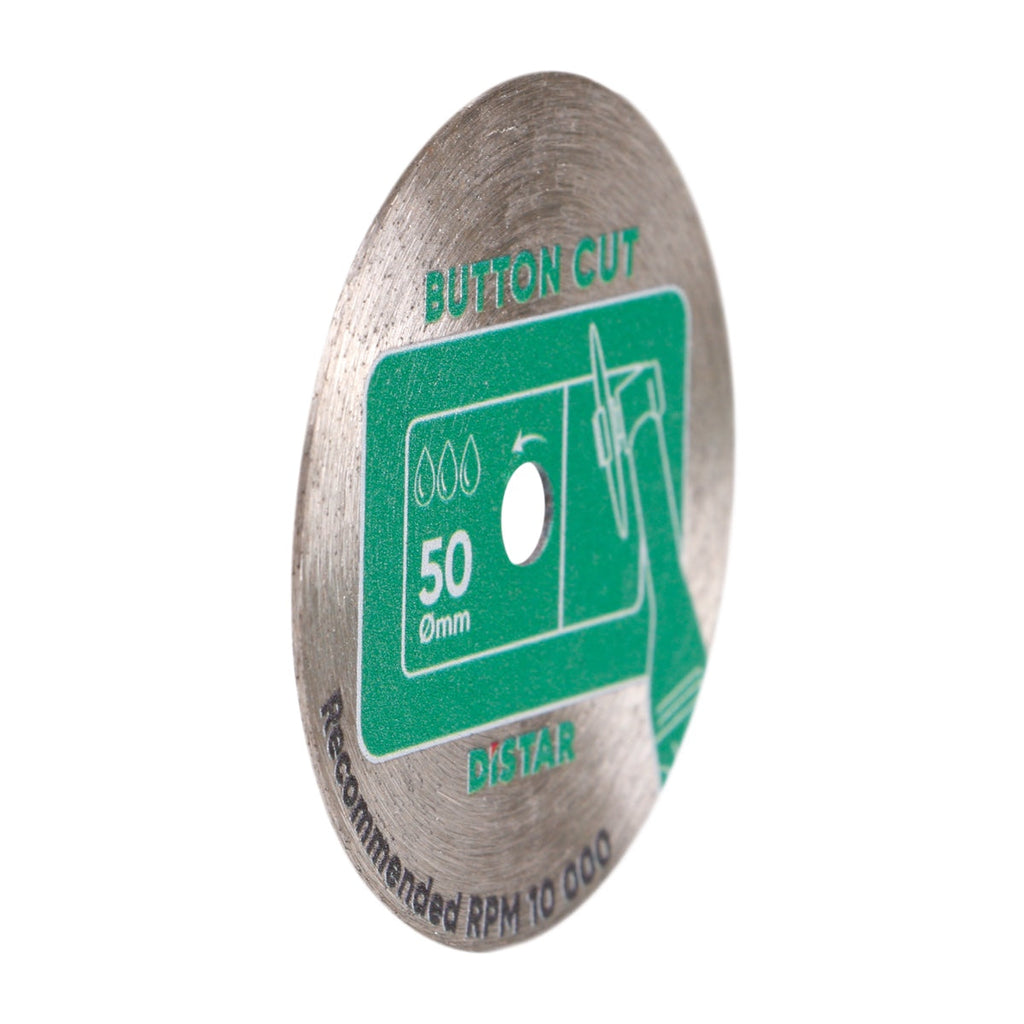

| Recommended Speed | ~10,000 RPM |
| Country of Origin | Ukraine |
| Brand | DISTAR |
ButtonCut vs Other Small Diamond Blades
- ButtonCut — ultra-thin 0.8mm kerf; chip-free finish; eliminates post-cut grinding; purpose-built for ceramic element fabrication
- Standard turbo blades — faster but produce chips requiring grinding
- General-purpose small blades — not optimized for flush button geometry or chip-free requirements
Why Choose the Distar ButtonCut 50mm Diamond Blade?
- Eliminates grinding — cut-to-finish in one step
- 0.8mm ultra-thin kerf for precise, clean edges
- Reduces production time several times over vs. traditional methods
- Designed specifically for ceramic flush button and switch fabrication
- Trusted Distar diamond quality for professional results
Frequently Asked Questions
Do I need to grind after cutting with the ButtonCut?
No. The ButtonCut's 0.8mm kerf and fine diamond grain produce a chip-free edge that requires no post-cut grinding — that's the core advantage of this blade.
What speed should I run this blade at?
Reduce speed to approximately 10,000 RPM for best results and to prevent chipping.
Can I use a hand sprayer for water cooling?
Hand sprayers are not recommended. Use the Cover attachment installed on your engraver machine, or a battery-powered water supply device, to maintain a constant water flow.
What is the bore diameter?
The bore is 5.8/3.2–3.0F, compatible with standard small engraver machine spindles.
Can I use this blade dry?
No — wet cutting is required. Dry use will cause chipping and significantly reduce blade life.
Works Well With
- Proxxon LHW/A Cordless Long Neck Angle Grinder — primary compatible engraver tool for this 50mm blade; ideal for precision ceramic element cutting
- Proxxon LHW/E Long Neck Angle Grinder — corded long-neck tool compatible with this blade
- Distar Water Guard Kit for Proxxon LWB/A — wet cutting coolant system; required for chip-free edges and maximum blade life
- Distar Polishing Support Adapter — reduces vibration and improves accuracy during extended cutting sessions
