Every week, fabricators ask some version of the same question: "Do I actually need a bridge saw, or can a rail saw handle what we do?"
Most answers online are either too vague to help or written to sell you the most expensive machine. This guide is a decision tool. Answer the five questions in Section 3 and you'll know exactly which machine your operation needs — and whether you might benefit from both.
What Is a Bridge Saw?
A bridge saw is a fixed shop machine. The slab comes to the saw — loaded onto a worktable, positioned, and cut by a blade head that travels along a fixed bridge. Bridge saws are the production workhorse of stone fabrication: large blade capacity, motorized head travel, 3-phase power, and the ability to run continuously through granite, quartzite, marble, ceramic, sintered panels, and engineered stone all day.
The Achilli AFR-A Motorized Bridge Saw is a compact motorized bridge saw built for professional fabricators who need production throughput without a massive footprint. With useful cut lengths from 1000 mm to 3500 mm, a motorized bidirectional head, and a manual bridge tilt from 90° to 45°, it handles straight cuts, miter cuts, and bevel work from a single machine. The HT (high-thickness) configuration accepts 16"–20" blades for slabs that standard setups can't reach.
Bridge saws are the right primary machine when:
- You have a dedicated shop floor with 3-phase electrical supply
- You're cutting at production volume — multiple slabs per day, consistently
- Your material mix includes hard stone (granite, quartzite) or sintered panels
- You need both straight and angled cuts on the same machine
What Is a Rail Saw (Track Saw)?

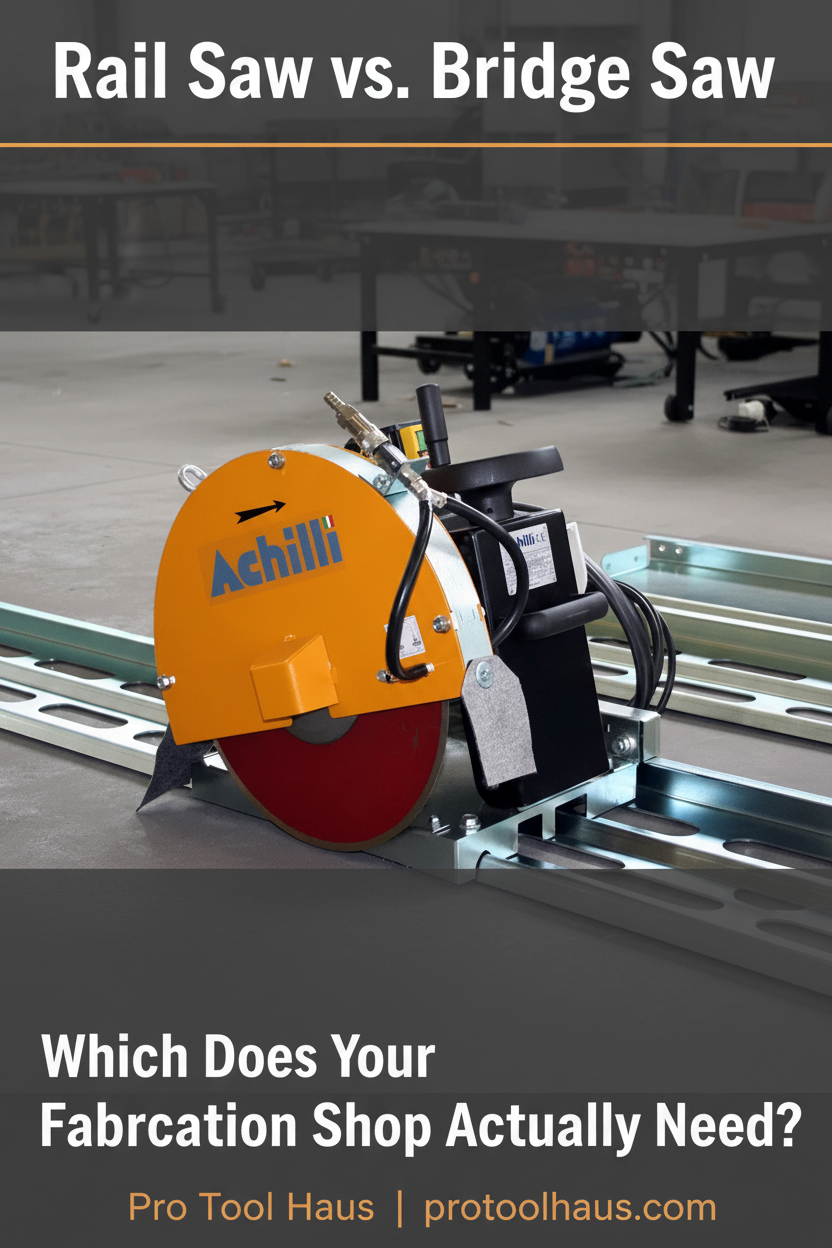

A rail saw — also called a track saw in stone fabrication — is a portable, track-guided cutting system. Instead of the slab coming to the machine, the machine goes to the slab. You set the rail directly on the stone, drop the cutting head onto the track, connect water, and make full-length straight rip cuts wherever the material is sitting.
The Achilli TSA Portable Track Saw is an Italian-built rail saw designed for exactly this workflow. A purpose-built 2.2 kW (3 HP) single-phase induction motor drives 12"–14" diamond blades along a precision 6-bearing head — available with a one-piece 13 ft rail for full slab rips in a single pass, no alignment joints. It runs on 230V single-phase power, so no 3-phase supply is required.
Rail saws are the right tool when:
- Cutting happens on the job site, not just in the shop
- Your shop doesn't have 3-phase power
- You need overflow cutting capacity without another large machine
- The work is primarily straight rip cuts — countertop sizing, cladding panels, slab-to-length cuts
The 5 Questions That Decide It
Skip the spec sheets for a moment. Answer these five questions honestly and the right machine becomes obvious.
1. Where is the cutting happening?
If your cuts happen exclusively in the shop, a bridge saw is the natural choice — it's faster, more powerful, and purpose-built for a fixed production environment. If you're cutting on-site — at an install, at a slab yard, or at a commercial jobsite — a rail saw is the only practical option. A bridge saw doesn't travel. A rail saw does.
2. What's your power supply?
Bridge saws require 3-phase power. If your shop has it, great. If you're working from a single-phase supply — or from a jobsite generator — a bridge saw isn't an option without an expensive phase converter. The TSA runs on 230V single-phase. It'll also run from a properly sized generator, which means it works anywhere you can park a truck.
3. How much volume are you cutting?
Bridge saws are built for continuous production. If you're running multiple slabs a day, every day, a bridge saw pays for itself in throughput and consistency. Rail saws are ideal for flexible volume — occasional cuts, overflow jobs when the bridge saw is the bottleneck, or on-site work that can't be brought back to the shop. They're not slow, but they're not designed for 20-slab production days either.
4. What's your floor space?
A bridge saw — even a compact one — requires a dedicated footprint, plus clearance on each end for slab loading and tail support. A 3500 mm AFR-A needs room to breathe. A rail saw packs into a van or truck, sets up in minutes on-site, and stores against a wall when not in use. For shops that are space-constrained, a rail saw is a meaningful production tool without the square footage commitment.
5. What are you cutting?
Both machines cut granite, marble, quartz, quartzite, and porcelain with the right blade. Where they diverge is in cut type and scale. A bridge saw handles straight cuts, miters, bevels, and grooves with the appropriate setup. A rail saw is optimized for straight rip cuts — ripping a slab to countertop width, cutting panels to cladding length, sizing material for installation. If your work is overwhelmingly straight cuts, a rail saw is more than capable. If you regularly need 45° miters or complex cut patterns at volume, the bridge saw is the right platform.
Can You Use Both? Yes — Here's Why
The rail saw vs. bridge saw question is often framed as either/or. In practice, many shops use both — and they don't overlap as much as you'd expect.
A common setup: a bridge saw as the primary shop machine for production cutting, and a rail saw for on-site work, installer support, and overflow capacity when the shop saw is running. For shops doing countertop installation, commercial cladding, or custom residential work, having a rail saw available means the fabricator doesn't have to haul material back to the shop for a single cut. That saves labor hours and scheduling friction on every install.
The investment gap also makes this viable. The TSA starts at $2,429 for the saw unit — well under the cost of a day of rework from a job-site cut that required a shop return. Adding rail capacity to a shop that already runs a bridge saw is a straightforward ROI decision for most operations doing any volume of installation work.
Cost Comparison
| Bridge Saw | Rail Saw | |
|---|---|---|
| Entry price | ~$18,965 (AFR-A) | ~$2,429 (TSA, no rails) |
| With rails | N/A | $3,000–$3,200 fully configured |
| Power required | 3-phase, 230V/400V | Single-phase 230V |
| Location | Fixed shop | Shop or job site |
| Setup time | Permanent install | 5–10 minutes |
| Financing | Available — $0 down, up to 84 months | N/A |
Bridge saw financing is available through Pro Tool Haus at $0 down with terms up to 84 months. For a machine at the $18,965 price point, that breaks down to manageable monthly payments that make bridge saw ownership realistic for shops at various stages. Learn more about equipment financing →
The Bottom Line
Buy a bridge saw if: you have a dedicated shop with 3-phase power, you're cutting at production volume, and your work requires both straight and angled cuts consistently.
Buy a rail saw if: you need portable on-site cutting capability, you're operating on single-phase power, or you need overflow straight-cut capacity without the footprint and investment of a fixed machine.
Buy both if: you run a shop with any volume of on-site installation, commercial project work, or jobs where hauling material back to the shop costs more time and money than a second saw.
Shop the Achilli Saw Line
- Achilli TSA Portable Track Saw — 3 HP, 13 ft single rail, 230V single-phase. Starting at $2,429.
- Achilli AFR-A Motorized Bridge Saw — 5 kW motorized bridge saw, cuts up to 3500 mm. Financing available.
- Equipment Financing — $0 down, terms up to 84 months.
