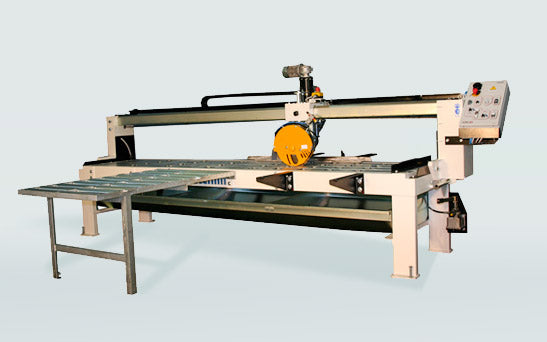

Achilli TFR-A – Automatic Bridge Saw for Stone
The TFR-A is a sturdy and compact bridge saw engineered for cutting large stone slabs with maximum precision. Built for ceramic, porcelain, and sintered material applications, this machine combines a massive rigid frame with motorized head feed technology to meet the demands of professional stone fabricators.
Key Advantages
- Customizable according to customer requirements

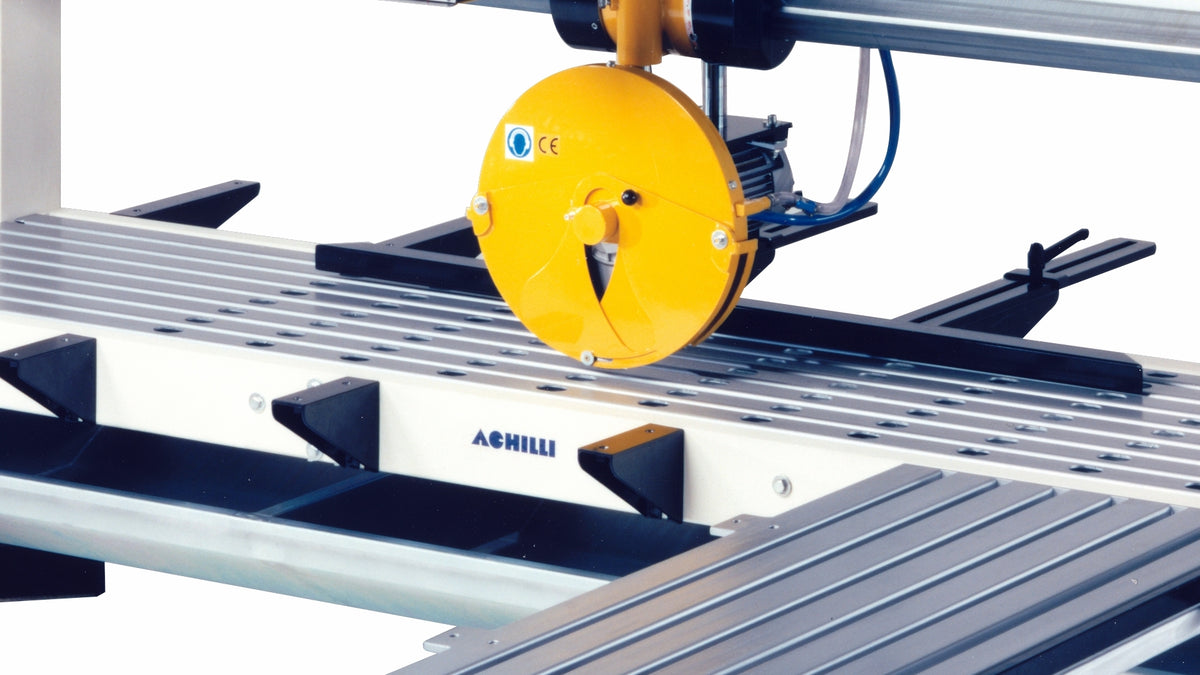

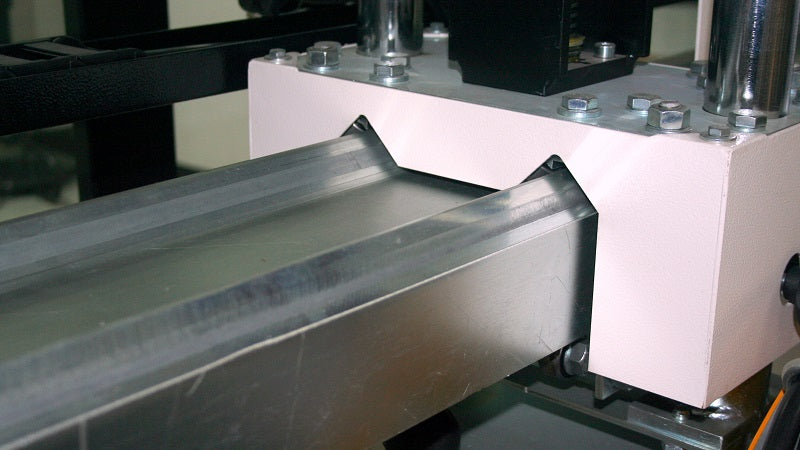

- Maximum cutting precision guaranteed by a special beam design
- Suitable for ceramic and sintered material slabs
- Massive frame for processing large stone slabs

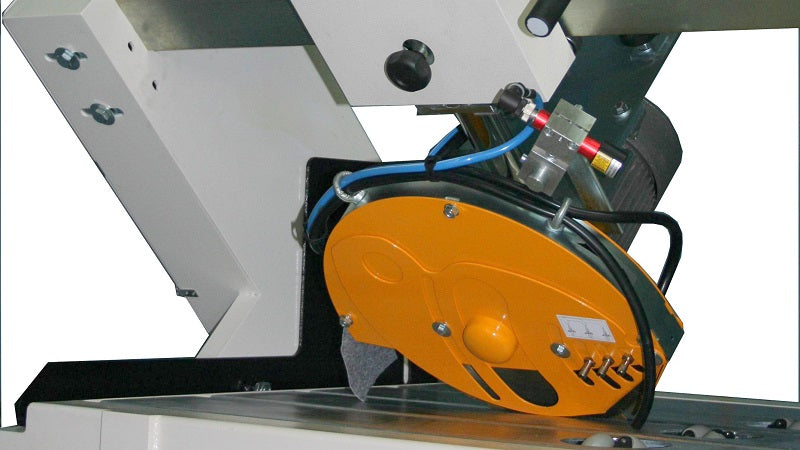

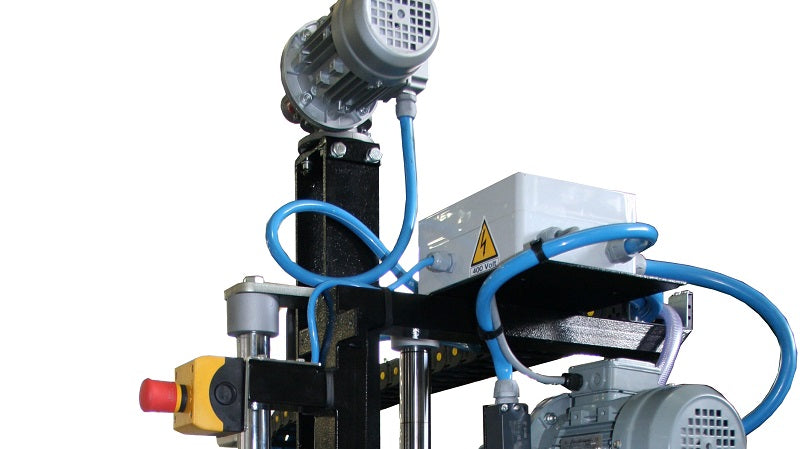

- Motorized head feed with variable speed in both directions
- Also available with manual head feed (TFR-C)
Technical Specifications
| Specification | TFR-A | TFR-A HT |
|---|---|---|
| Useful cut | 3300 mm (10'10") | 3300 mm (10'10") |
| Diamond blade diameter | 250–300–350 mm (10"–12"–14") | 400–450–500 mm (16"–18"–20") |
| Blade bore size | 25.4 mm (1") | 25.4 mm (1") |
| Motor power | 5 kW = 7 HP (3ph.) | 4 kW = 5.5 HP (3ph.) |
| Main motor rotation speed | 2800 rpm @ 50Hz – 3400 rpm @ 60Hz | 1400 rpm @ 50Hz – 1700 rpm @ 60Hz |
| Standard voltage/frequency | 400V-50/60Hz / 230V-60Hz 3ph. | 400V-50/60Hz / 230V-60Hz 3ph. |
Worktable

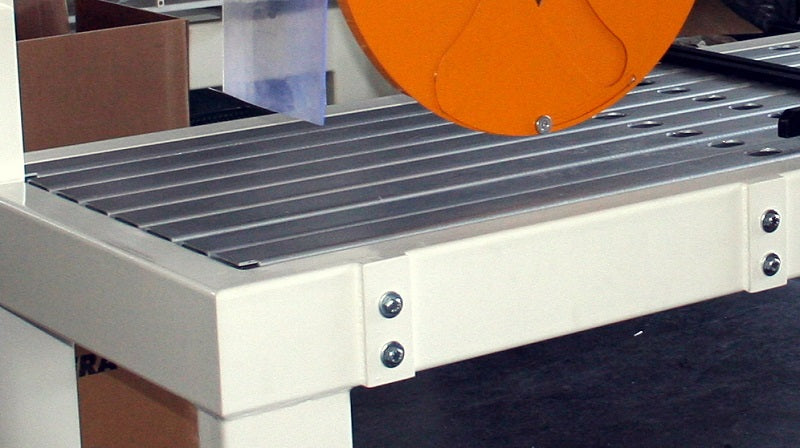

Worktable made of galvanized steel rails for durability and easy slab positioning.
Available Accessories (Call for Pricing)
- Worktable with Pop-Up Rollers – Manual or motorized pop-up rollers to facilitate slab loading and positioning; roller table with omni-directional rollers
- Side Extension Tables with Rollers – Side extension tables equipped with rollers to facilitate slab movement. Dimensions: 1510x865 mm
- Laser Alignment Device – Mounted on the head to show the blade's cutting line for precise positioning
- Water Tank – Built-in recycling pump for disc cooling during processing
- Control PLC – PLC controlling for step-cut programming
- Rubber Covering on the Worktop – Non-slip rubber covering for worktable surface, ideal for ceramic slabs
- Pneumatic Piece Holder for Ceramic Pieces – Composed of 6 pneumatic pistons connected to compressed air. Length: 2500mm (min. width 7cm, piston travel 15mm). Can be fixed on the standard side stop or on the device for parallel cuts.
Also Available
The TFR-A HT variant supports larger blade diameters (up to 500 mm / 20") for heavy-duty cutting applications. Contact us for custom configurations.
Shipping & Delivery
The Achilli TFR-A ships via freight carrier (LTL/FTL). Due to the size and weight of this machine, freight shipping is quoted separately and is not included in the purchase price.
- A Pro Tool Haus team member will contact you within 1–2 business days of your order to provide a freight quote and coordinate delivery logistics.
- Liftgate service and inside delivery are available upon request (additional charges may apply).
- Lead times vary based on availability and configuration. Contact us before ordering for current lead time estimates.
- Delivery to commercial addresses with a loading dock or forklift access is strongly recommended.
Questions about shipping? Contact our team before placing your order.
