Description

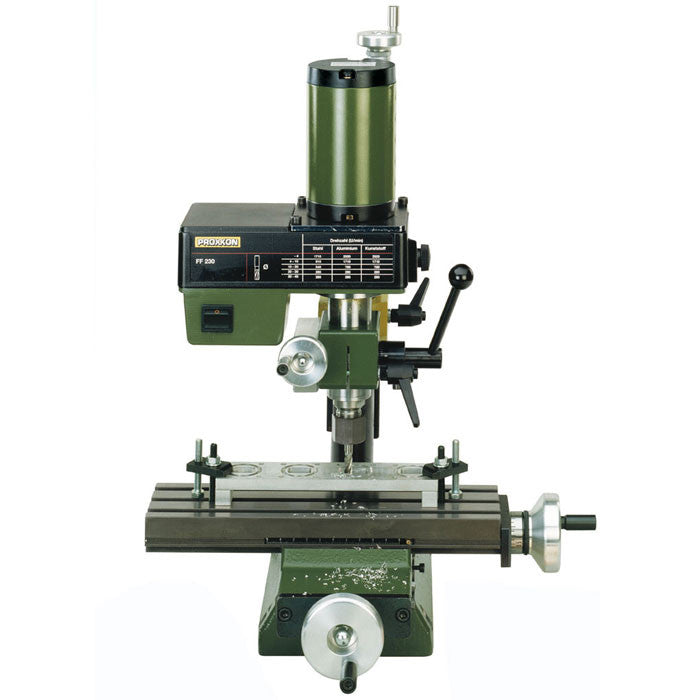

Precision bench milling for metal and plastic. The Proxxon FF 230 Micro Mill is a compact, accurate milling system for milling, drilling, and countersinking steel, cast iron, aluminum, brass, and plastic — delivering the capability of a full-size milling machine in a bench-top footprint. Six spindle speeds from 280 to 2,200 RPM cover everything from heavy steel milling at low speed to fine finishing passes at high speed, and the 270×80mm table with 170×65mm X/Y travel handles a wide range of workpiece sizes. Three collets are included.
What's Included
- Proxxon FF 230 Micro Mill
- 3 collets
Key Specifications
- Spindle speeds: 6 speeds — 280, 550, 870, 1,200, 1,500, 2,200 RPM
- Table size: 10-5/8" × 3-5/32" (270 × 80mm)
- Column: Ø 1-3/8" × 15-3/4" (35 × 400mm)
- X/Y travel: 6-11/16" × 2-9/16" (170 × 65mm)
- Overall height: 20" (500mm)
- Power: 110–120V AC, 60 Hz
- Weight: 41 lb (17 kg)
- Part No.: 34108
Compatible Materials
- Steel: Milling, drilling, and countersinking in mild and alloy steel
- Cast iron: Facing and slotting operations
- Aluminum & brass: High-speed finishing passes for clean surfaces
- Plastic: Precise milling of engineering plastics and acrylic
Recommended Upgrades & Accessories
- Collet Set for FF 230 — 5-Piece (No. 24144): Expands collet range beyond the 3 included collets for greater cutter shank compatibility
- Fine Feed Upgrade (No. 24140): Adds micrometer-style depth control with 0.05mm graduations and resettable zero — essential for precision facing and step milling
- Compound Table KT 230 (No. 24106): Adds a larger X/Y travel table for expanded workpiece capacity
- Chip & Drip Collecting Tray for FF 230 (No. 24116): Keeps the work area clean during milling operations
Frequently Asked Questions
How many collets are included?
Three collets are included. For a wider range of cutter shank sizes, the 5-piece collet set (No. 24144) is available separately.
Can I add a fine feed to this machine?
Yes — the Fine Feed (No. 24140) is a direct upgrade for the FF 230, adding micrometer-style depth control with 0.05mm per division and a resettable zero scale.
What milling cutters are compatible?
The FF 230 accepts standard shank milling cutters in sizes matching the included collets. The HSS Milling Cutter Set (No. 24610) and 6–10mm HSS Milling Cutter Set (No. 24620) are compatible options.
Works Well With
- Proxxon Collet Set for FF 230 — 5-Piece (No. 24144) — expanded collet range for more cutter shank sizes
- Proxxon Fine Feed Upgrade for FF 230 (No. 24140) — precision depth control upgrade
- Proxxon Compound Table KT 230 (No. 24106) — larger X/Y travel table
- Proxxon Chip & Drip Collecting Tray for MF 70 & FF 230 (No. 24116) — work area cleanliness during milling
- Proxxon HSS Milling Cutter Set (No. 24610) — end mills for the FF 230
- Proxxon HSS Milling Cutter Set 6–10mm (No. 24620) — larger diameter end mills
