Description

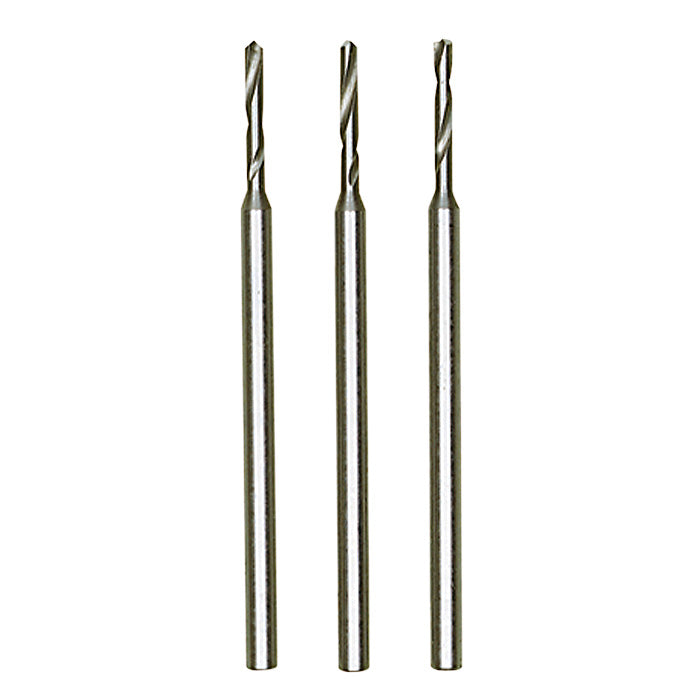

The Proxxon Tungsten Vanadium Micro Twist Drills (No. 28856) are a 3-pack of ×1.2mm (3/64") precision micro twist drills for Proxxon Micromot tools, on 2.35mm shanks. Manufactured from one-piece blanks in tungsten vanadium steel for highest concentricity — the single-blank construction eliminates the joint between drill tip and shank, providing breakage safety and long service life at fine micro drill diameters.
For drilling metal, non-ferrous metals, plastics, and wood. Speed guidance: approximately 8,000 RPM for soft materials, approximately 3,000 RPM for hard materials.
Key Features
- ×1.2mm diameter — mid-range micro drill; precision holes with a good balance of fineness and breakage tolerance
- One-piece blank construction — highest concentricity; breakage safety and long life at fine diameters
- Tungsten vanadium steel — for metal, NF metals, plastics, and wood
- 2.35mm shank — fits standard Micromot collets and keyless chucks
- 3-pack — spares included; useful at fine diameters where breakage can occur
Speed Guide
- Soft materials (wood, plastics): approx. 8,000 RPM
- Hard materials (steel, NF metals): approx. 3,000 RPM
Specifications
- Part Number: No. 28856

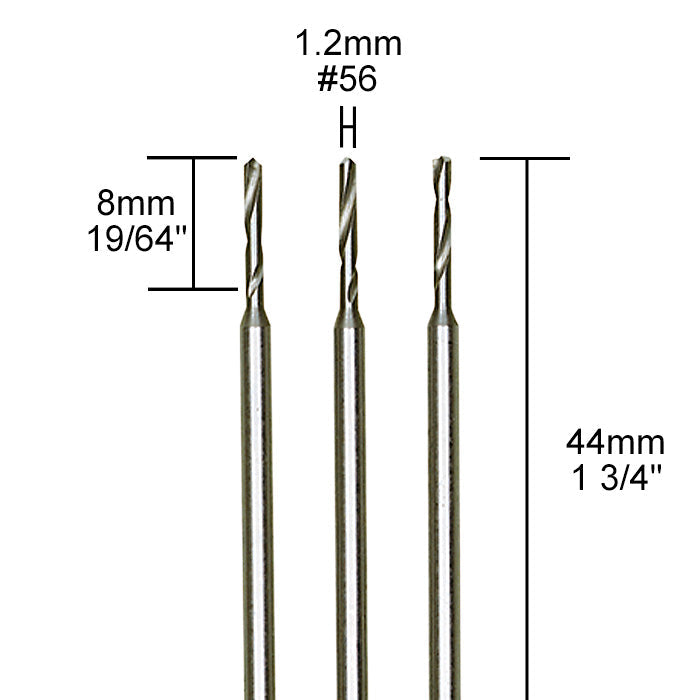

- Drill diameter: ×1.2mm (3/64")
- Shank: 2.35mm (3/32")
- Material: Tungsten vanadium steel
- Quantity: 3 per pack
- Materials drilled: Metal, non-ferrous metals, plastics, wood
TV Micro Twist Drill Diameter Guide
- ×0.5mm (No. 28864) — absolute finest; maximum breakage risk — use drill stand and minimal pressure
- ×0.8mm (No. 28852) — very fine; ultra-fine holes with slightly more breakage tolerance
- ×1.0mm (No. 28854) — fine; precision holes with good breakage tolerance
- ×1.2mm / No. 28856 (this drill) — mid-range; balanced fineness and breakage tolerance for general micro drilling
- ×1.6mm (No. 28858) — largest micro drill; wider precision holes with lowest breakage risk in the range
Works Well With
- Professional Rotary Tool IBS/E (No. 38481) — collet-based 100W Micromot tool; use with 2.35mm collet
- Precision Rotary Tool FBS 115/E (No. 38472) — keyless chuck Micromot tool accepting 2.35mm shank
- MICROMOT Steel Collet Set — 6-Piece (No. 28940) — includes 2.35mm collet for this drill
- Drill Stand MB 200 (No. 28600) — for stationary precision drilling with controlled depth and perpendicularity
- Modeler's Set — 13-Piece (No. 28910) — comprehensive accessory set including drilling, milling, and grinding bits
